Wall-Scanning Ground-Penetrating Radar SL-WallScan GPR
Model:SL-WallScan GPR
Detection Depth
0-3m
Operating Frequency
400MHz and above
Detection Accuracy
±1 cm
Mounting MethodVacuum suction
Job ModeVertical surface work

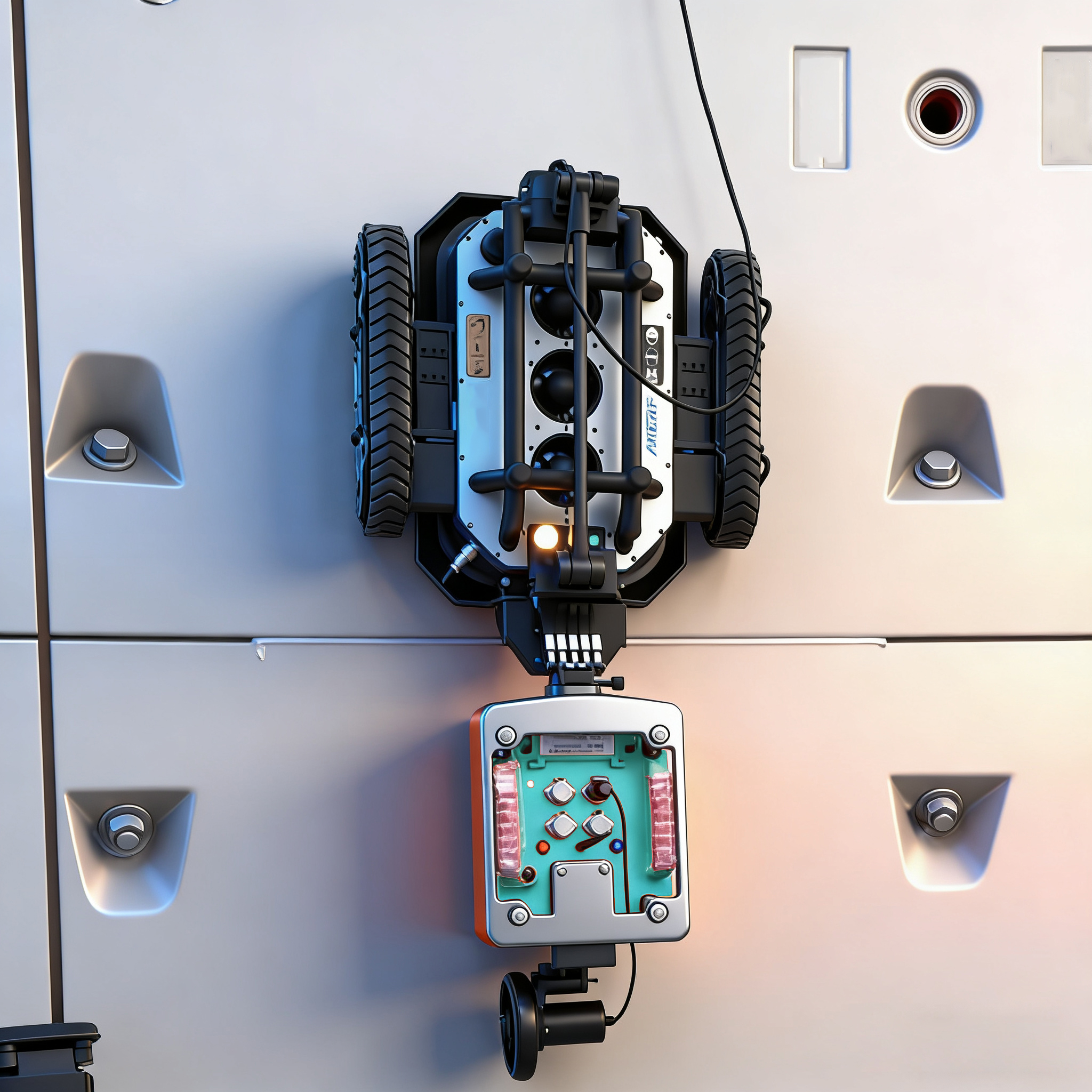

Device TypeCompact wall-climbing robot
Product Features
Replace manual labor to reduce personnel safety risks at the source
Vertical Surface Work

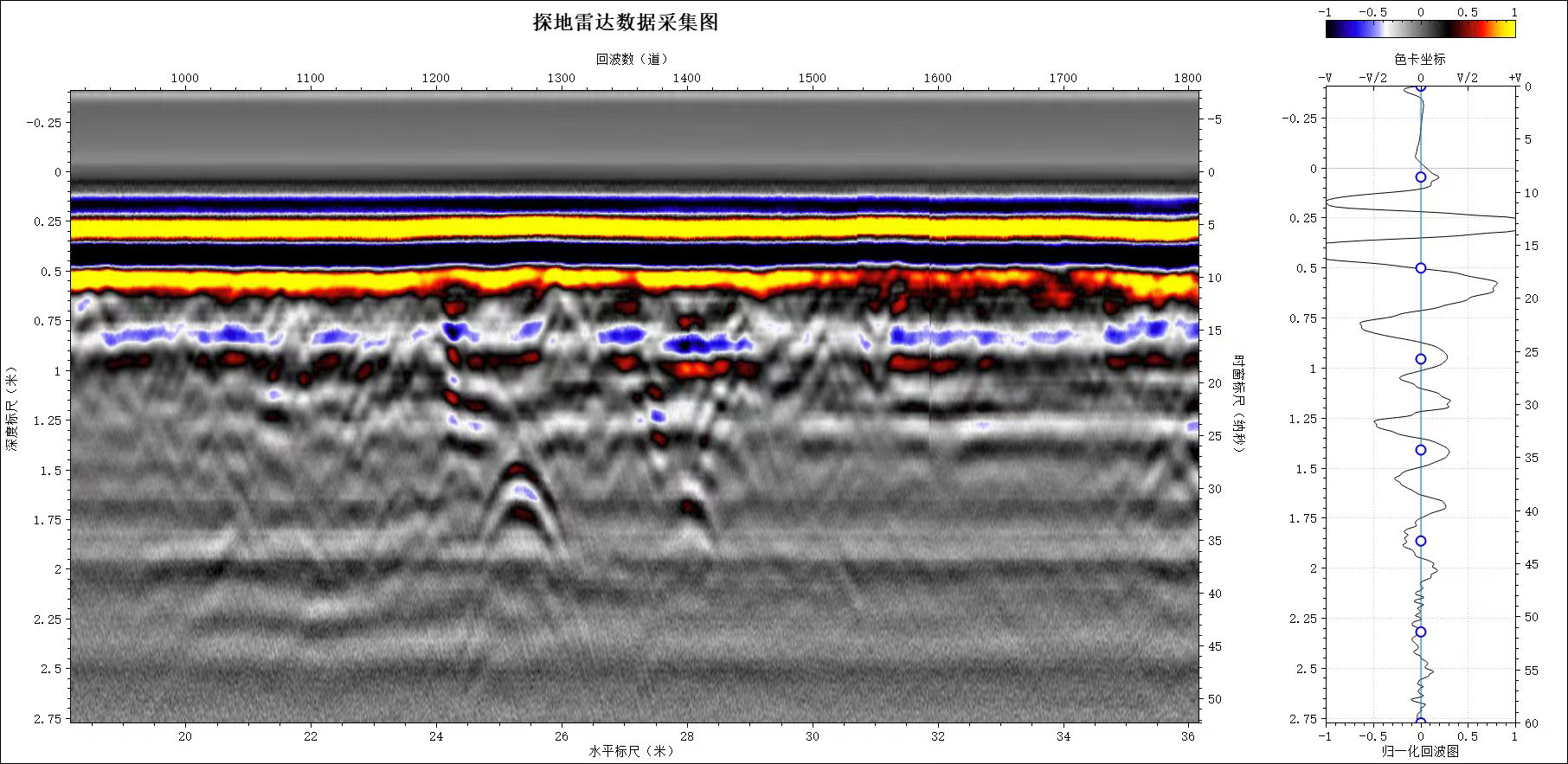

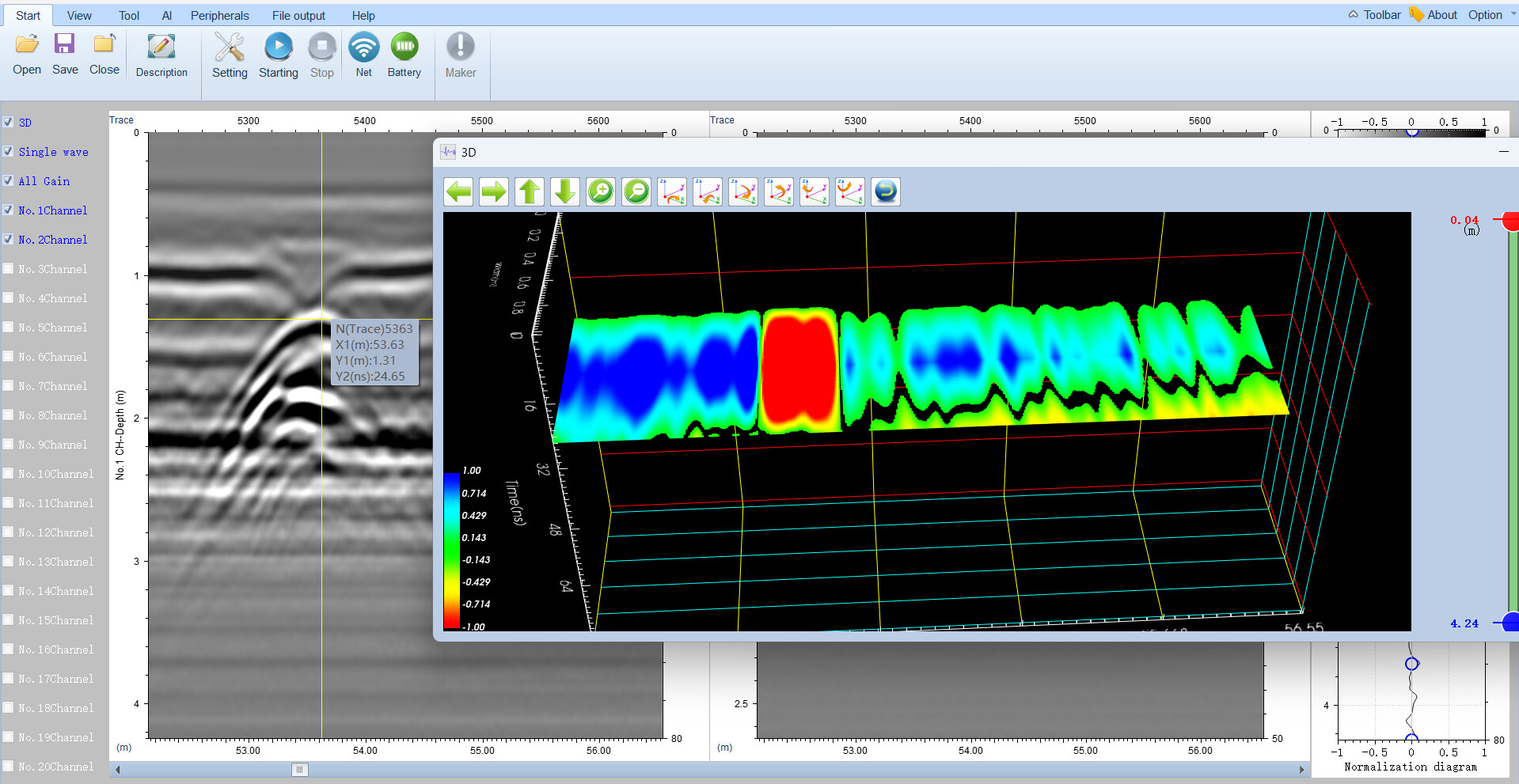

Precise Data Visualization
Security Protection System
Adaptive Wall Adjustment
All-weather operation capability
Technical Specifications
| Mobile Platform | Vacuum suction wall-climbing platform |
| Antenna Type | 400MHz and above shielded antenna |
| Time Window Range | 0-150ns |
| Detection Range | 0-3m (concrete) |
| Image Resolution | 1080P |
| Crawl Speed | 0-20 m/min adjustable |
| Measurement Mode | Spot measurement, distance measurement, continuous (supports synchronized external video camera) |
| Climbing Angle | 0-90° (vertical) |
| Power Source | Lithium Battery / Outdoor Power Station |
| Battery life | Unlimited (mains/outdoor power station), built-in battery 20min (customizable expansion supported) |
| Power Transmission Type | Tape Cable |
| Security System | Dual Fall Protection |
| Operating Temperature | -10℃ ~ +50℃ |
Application Scenarios
1
Tunnel Lining: Quality Inspection for Highway and Railway Tunnel Linings
2
Dam body: Internal defect detection in concrete dam structures
3
Wall Structure: High-rise Building Walls, Bridge Piers Inspection
4
Shaft Inspection: Subway shafts and mine wall inspections
Typical Use Cases
Tunnel Lining Inspection
Crawl vertically along the tunnel wall to inspect lining thickness and detect internal voids.
Dam Safety Monitoring
Inspect dam surfaces for internal cracks and seepage channels.
Bridge Pier Inspection
Climb bridge piers to detect internal concrete defects
